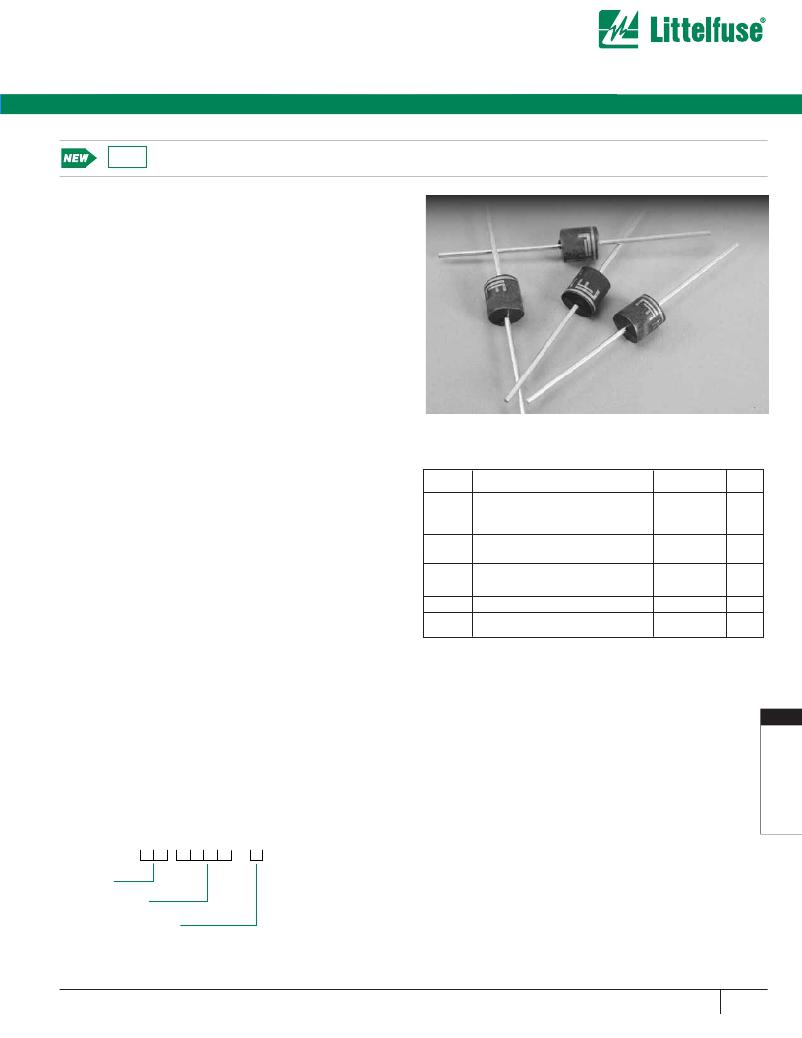

Silicon Avalanche Diodes
Axial Leaded High Power Automotive Transient Voltage Suppressors
RoHS
SLD Series
The SLD series is specifically designed for automotive
applications, available in both unidirectional and bidirectional.
The SLD 10U is designed to be used in series, for example three
10Us in series for a 30 volt working; this configuration will
provide a very high power (a multiple of 3) capability and is a far
superior solution than using devices in parallel, which will require
closely matched devices in order to prevent ‘current hogging’
and consequently, damage to the device.
FEATURES
? RoHS Compliant
? 2200 Watts Peak Power rated with 100μS/150mS pulse
(applies to a single device)
? 50,000 Watts Peak Pulse Power based on 8/20μS (applies to a
single device)
? UL 94V-0 Flammability classification
APPLICATION
? Designed to protect sensitive electronics which operate
ABSOLUTE MAXIMUM RATINGS @25?C case temp
(unless otherwise noted)
within an automotive system, such as: sound systems, satellite
navigation, climate control, engine management, stability
control, ABS etc.
Agency Approvals: Recognized under the Components
SYMBOL PARAMETER
PPP
Peak pulse power
100 μ /150m sec. Pulse
8/20 μ sec. Pulse
VALUE
2,200
50,000
UNIT
Watts
Watts
Program of Underwriters Laboratories.
Agency File Number: E128662
PM (AV)
Vf
Tj
Tstg
Steady state power dissipation,
lead length 9.5mm, TL - 85 (note1)
Maximum instantaneous forward
voltage @ 100amps (note 2)
Junction temperature
Storage temperature
6.3
3.5
-55 to +150
-55 to +175
Watts
Volts
°C
°C
Note 1. Mounted on copper pad area 40mm square.
Note 2. Using 300 microsecond square pulse; applies to uni-
directional only, and a single device only.
For devices used in series, this value should be multiplied by the
number of devices.
Mechanical Specifications:
6
Weight:
Case:
Mounting Position:
Polarity:
0.07 ounce, 2.1 gram
Molded plastic over glass
passivated junction
Any
Color band denotes positive end
(cathode) except Bipolar
SLD
ORDERING INFORMATION
U 0 1 8
Vo ltage
Bi-Directional
Packaging Options
T = Tape and reeled (800 pcs)
Terminal:
w w w. l i t t e l f u s e . c o m
Plated Axial leads, solderable per
MIL-STD-750, Method 2026
305
